Odd-even difference image
| -374 | 991 |
|
|
| image min: -532, image max: 991 |
 |
Mean image
| 0 | 2183.79 |
|
|
| image min: 0, image max: 2183.79 |
 |
Standard Deviation image
| 0 | 129.527 |
|
|
| image min: 0, image max: 332.57 |
 |

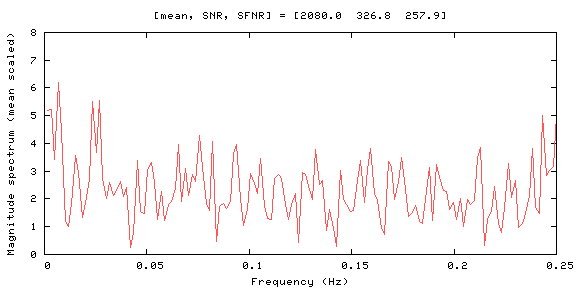

SFNR image
| 0 | 557.698 |
|
|
| image min: 0, image max: 557.698 |
 |
Acquisition parameters
| dimensions | 64x64x32x300 |
| spacing | 3.4375mmx3.4375mmx4.5mmx1ms |
| gap | 0mmx0mmx0.5mmx0ms |
| examnumber | 350149199 |
| seriesnumber | 301 |
| runnumber | 3 |
| protocolname | Resting State fMRI CLEAR |
| scandate | 2011-02-06 |
| scantime | 15:43:30 |
| scannermanufacturer | Philips Medical Systems |
| examdescription | fBIRN PHANTOM TransMAPP 6 FEB 2011 |
| description | Resting State fMRI |
| operator | |
| scannermodelname | Achieva |
| scanningsequence | GR |
| sequencevariant | SK |
| scanoptions | FS |
| mracquisitiontype | 2D |
| sequencename | |
| numaverages | 1 |
| imagingfrequency | 127.783453 |
| imagednucleus | 1H |
| spacingbetweenslices | 4.5 |
| numphaseencodingsteps | 63 |
| echotrainlength | 63 |
| percentsampling | 100 |
| percentphasefieldofview | 100 |
| softwareversions | 2.6.3 |
| lowrrvalue | 0 |
| highrrvalue | 0 |
| intervalsacquired | 0 |
| intervalsrejected | 0 |
| heartrate | 0 |
| reconstructiondiameter | 220 |
| receivecoilname | SENSE-Head-8 |
| transmitcoilname | B |
| inplanephaseencodingdirection | COL |
| flipangle | 77 |
| sar | 0.06140622496604 |
| dBdt | 63.6508518710212 |
| acquisitionnumber | 3 |
| instancenumber | 0 |
| temporalpositionidentifier | 1 |
| numtemporalpositions | 300 |
| samplesperpixel | 1 |
| photometricinterpretation | MONOCHROME2 |
| rows | 64 |
| columns | 64 |
| bitsallocated | 16 |
| bitsstored | 12 |
| highbit | 11 |
| lossyimagecompression | 00 |
| magneticfield | 3 |
| fieldofview | 220 220 |
| tr | 2000 |
| te | 29.923 |
| prescribedslicespacing | 4.5 |
| acquisitionmatrix | 64 63 |
| pixelbandwidth | 3051 |
| bandwidth | 195.264 |
| frequencydirection | 1 |
